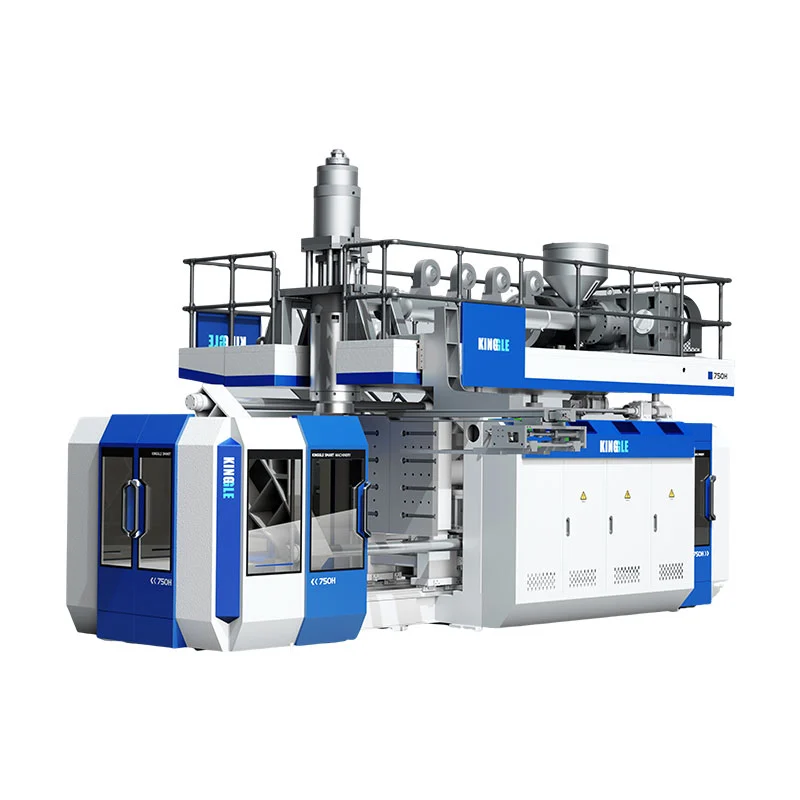

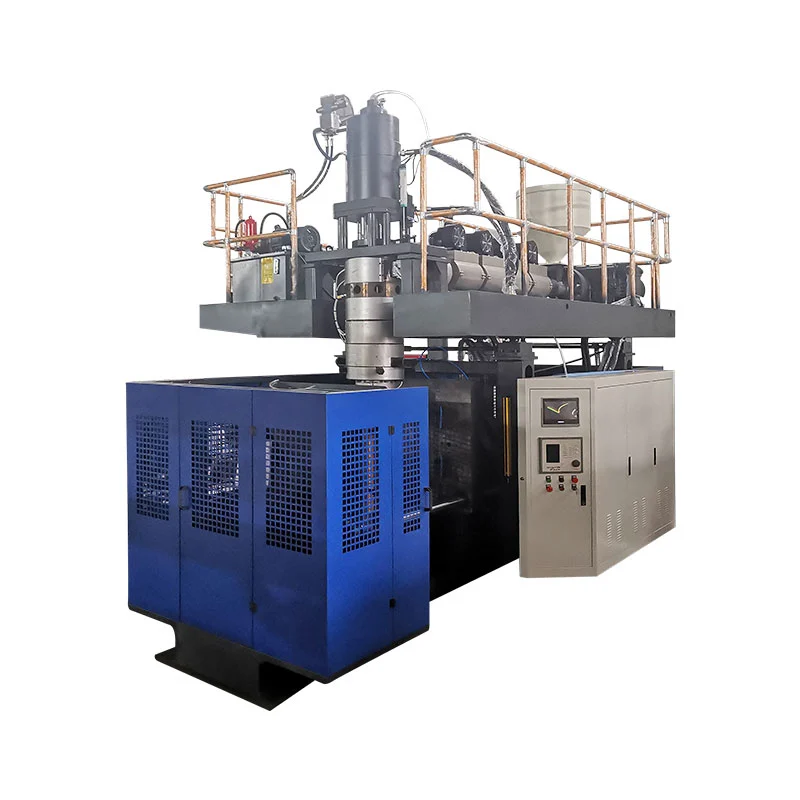

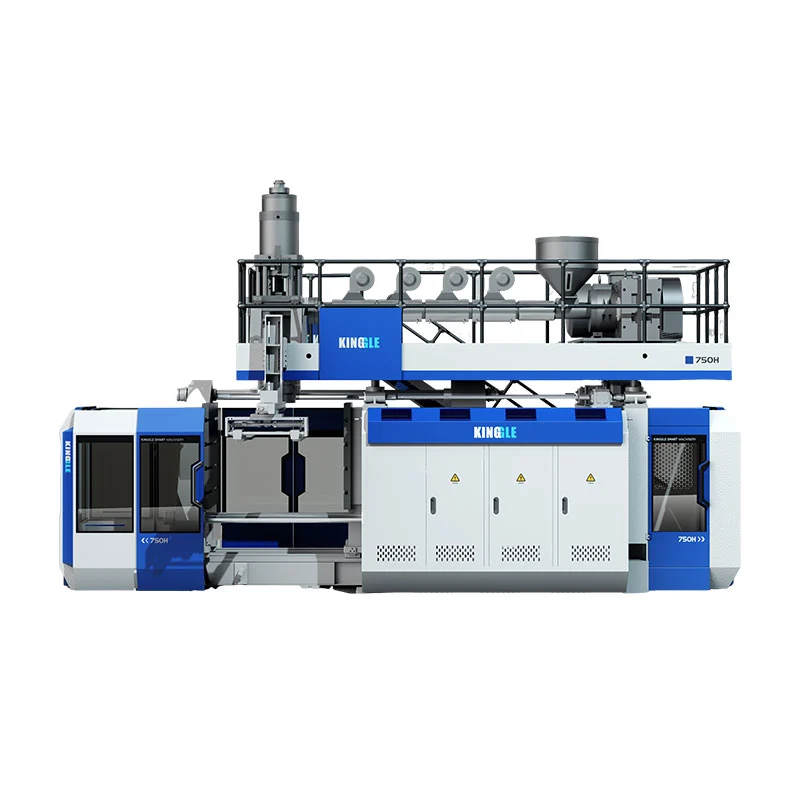

60L Accumulator Blow Molding Machine

Model:KGB90AP

Foar KGB90ap, in enerzjyf-effisjint Blow-akkumulator Blow Molding Magemen mei dûbele laach of dûbele kleur-blow-skowmachine-machine-technology. It is spesjaal ûntwurpen foar dûbel-laach en dûbele kleuren 60l-blow-tapassingen, lykas Toolbox Blow-oanmakkassines / 60l-konteners, it soarget foar betrouberens en kostenbesparingen.

Folume: 60lGewicht: 15t

Stjoer Inquiry

produkt Omskriuwing Specification Application

KGB90AP 60L Accumulator Blow Molding Machine hat dûbeldekstruiesteem kin passe dûbele laach- of dûbele kleurproduksje-easken om te ferlingjen Produkt Rang.
Omfettet in MOOG 100 Dikte Controller, robotearm, en ûnderkant blaasd systeem, ferbetterjen fan produktiviteit en produktkwaliteit. Dizze alsidige masine is ideaal foar ferskate applikaasjes, ynklusyf gemyske trommelblauwfoarming Masine Solutions, plestik-extrusion Blow Molding Machine Prosesses ,.

Funksjes en foardielen

Dit model is in fêste skimmel iepening en slutende type, mei help fan in dûbele bân roede Synchrone skjinne slútmeganisme, en de direkte druk fan oalje-cilinder klamp
Opslach Cylinder Die Head Series
Maksimum folume 60l
Geskikt Fotoolbox, ensfh.
Mei help fan unike technology, skimmelskleamend pressuerisaasjesysteem, grutte klemjen Force, Fast MOLD Camping Speed, koarte produktsyklus

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

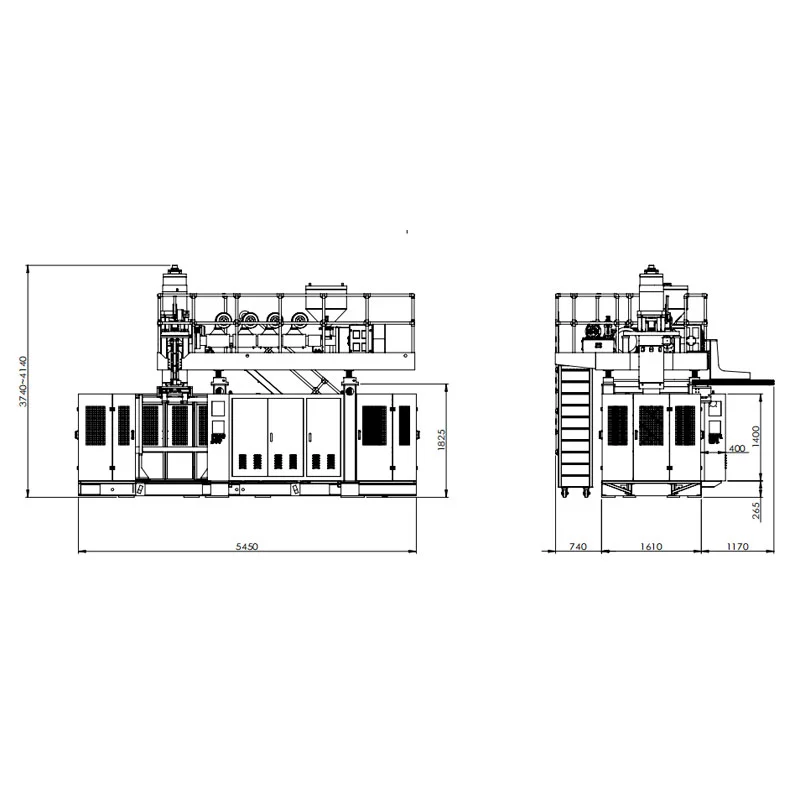

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
