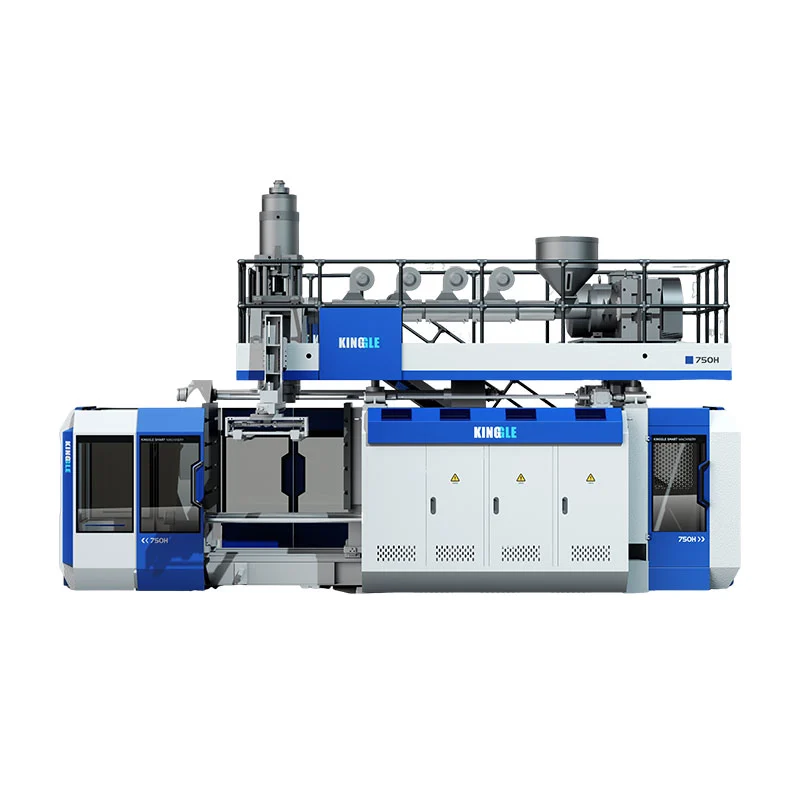

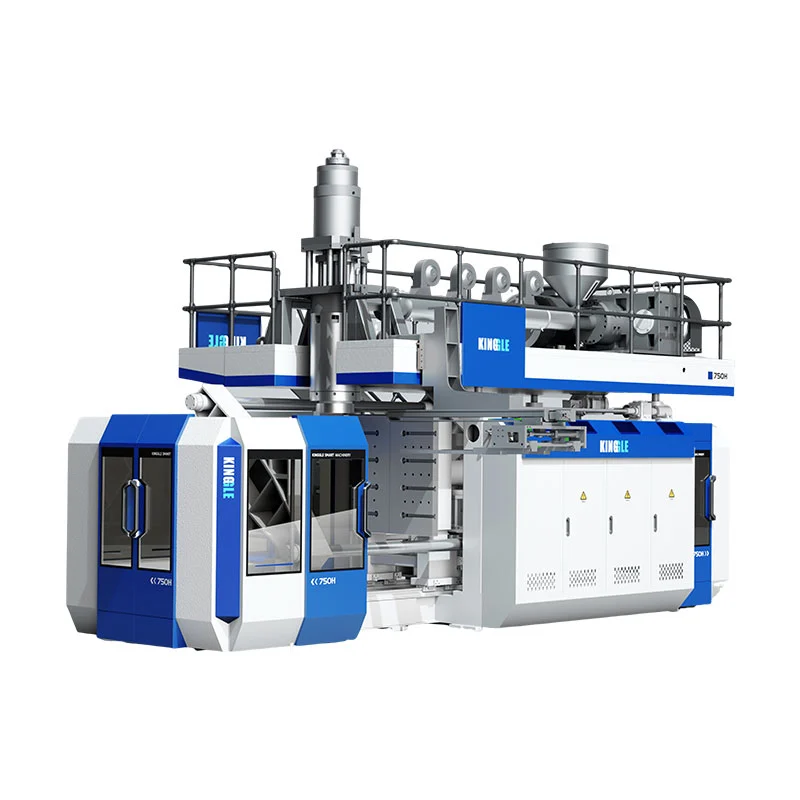

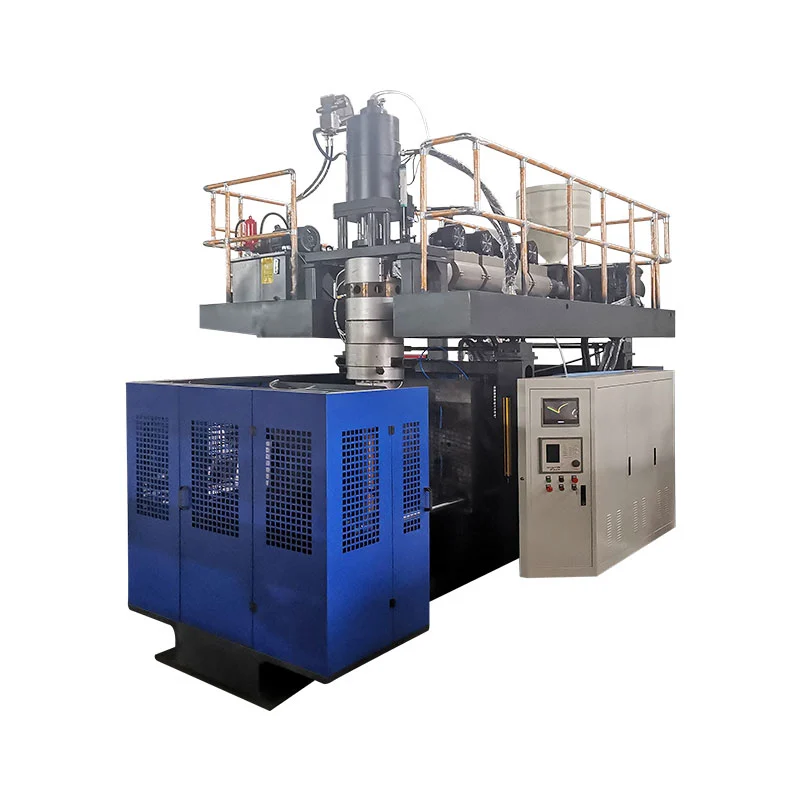

60l sammelje Blow Molding Machine

Model:KGB90A

Dizze fêste iepening en slutende blowmagepasjine, mei dûbele pull synchronous clamping en oaljesbylend direkte drukbeslacht, leveret hege prestaasjes en effisjint. Foarsjoen fan in hydralysk servo-systeem foar snelle antwurd- en enerzjybesparring, dizze 60l sammelje blaasfoarmmasjine excels by it produsearjen fan in breed oanbod fan produkten, út lytsere konteners nei grutterevoluminten.

Folume: 60lGewicht: 14t

Stjoer Inquiry

produkt Omskriuwing Specification Application

It standert KGB90a-model, in liedende accumulator Haadblauwmûnens, omfettet in MOOG 100 Dikte Controller, Robot Arm, en boppende systeem, ferbetterje produktiviteit en produktkwaliteit. Dizze 60l-oanmakke opknapbehear is ideaal foar ferskate applikaasjes, ynklusyf matchesmachine-oplossingen, plestikwetterkanks, Toys, Toys, auto-ûnderdielen, Toolboxes, Toolboxes, en ferkearsbarriêres,

Funksjes en foardielen

Dit model is in fêste skimmel iepening en slutende type, mei help fan in dûbele bân-adchrone skatmeganisme, en de djoer fan oalje-cylinder
● Storage CYLINDER DE HEAD SERIES
● Maksimum folume 60l
● Geskikt foar gemyske ferpakkingsstapels, grutte boartersguod, Abs Car Tailfins, ensfh.
● Brûk unike technology, skimmelklamperpressurisearringssysteem, grutte klemmende krêft, Fast MOLD CLAMPING SPEED, koarte produktsyklus

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

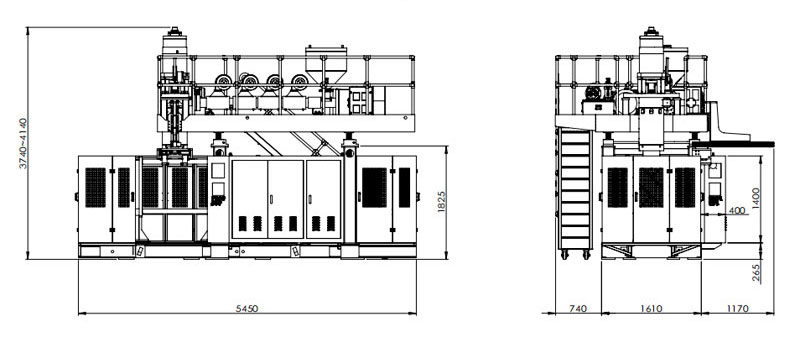

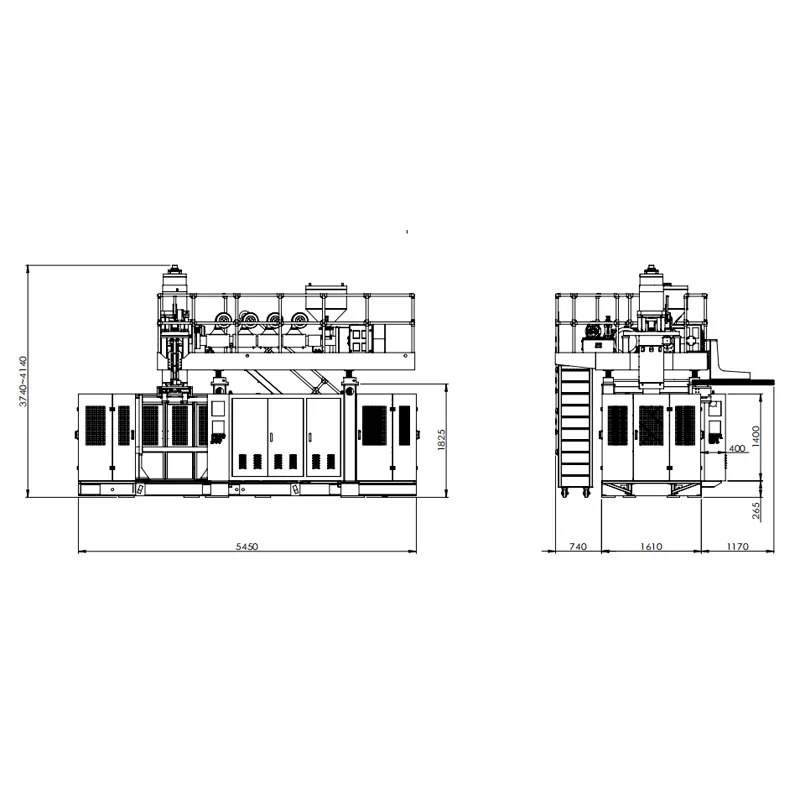

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
